INTEX UTP CAT6 LAN CABLE

INTEX UTP CAT6 LAN CABLE

Intex's UTP LAN cable cat6e, when compared to UTP LAN cable cat5, is the superior option in
terms of performance, convenience of use, and compatibility with other devices. The wiring of the Intex
UTP LAN cable features greater shielding, a thicker gauge wire, and more twists per inch, all of which
contribute to a reduction in the likelihood of signal interference and network failure.

Achieve super-fast noise-free connection with Intex LAN cable as it comes with a PVC Cross Separator
between four twisted pairs that minimizes noise by preventing signal interference to provide a noise-
free and continuous UTP cable LAN connection. With its cross flexi-core, the Intex UTP cat6e network
cable is more robust and won't bend or break. It is corrosion resistant, waterproof, and uses a more
long-lasting PVC material, making it suitable for use in either indoor or outdoor applications. It is an
excellent choice for either professional or personal cable management, and it also has the potential to
result in a performance boost that is easily observable.

In terms of performance, the Intex Cat6 cable provides a transmission frequency of up to 500 Mhz. At a distance
of one hundred meters, the Intex cat6 cables provide a maximum transmission speed of 10 gigabits per
second. UTP LAN cat6 wire is an ideal option for use in homes, offices, and even data centers because
of its increased maximum transmission rates, frequency, and capacity.

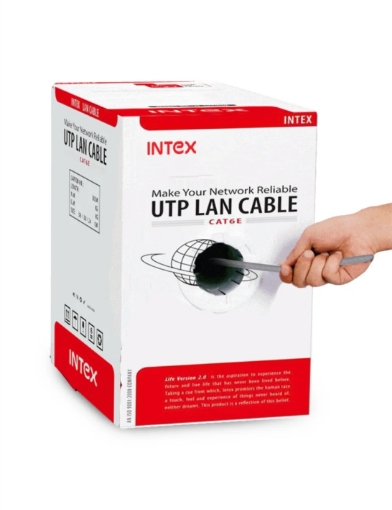

The long ethernet cable is wound into a rolling reel, hence you can move it without restriction and saves
both time and effort. The cable can be taken out of the box without getting caught on anything quite
easily.

Product specification:
Shielding: U/UTP
 Length: 305 m
 Conductor resistance (max.): 60 - 90Om / 305m
 Insulation resistance (min.): 5000mOm km
 Pair-to-Ground capacitance: < 330PF / 100m
 Characteristic impedance: < 100Om (+/- 15)
 Transport and storage temperature: 0 - 60 degrees
 Operating temperature: -20 degree to 70 degrees
 Working Distance: 100 – 120 m

Features
 Up to 500 Mhz data transmission rate.
 Single Wire conductor stranding.
 Superior conductor for 23AWG solid bare copper wire.
 Thick copper layer for accelerated performance and dependability.
 Premium LAN wire in 4 twisted pairs with varying pitch and quiet cable lay-up.
 Secure and dependable polyethylene insulation.
 Exceed Category 6 FTP requirement.
 Easy pull box packaging.
